Firmware update

DFU updater

Load the correct `.bin`, connect in update mode, then send it.

Connect a device in update mode, then choose Connect.

DFU mode

WebUSB requires Chrome or another Chromium browser on desktop. On Windows, install the WinUSB driver first if the device is not selectable.

Instructions

Steps

Use Chrome or Edge on desktop.

Before you start

Download the firmware zip for your device, extract it, and load the `.bin` file here.
Disconnect other DFU devices if Chrome shows the wrong target.
On Windows, install the default WinUSB driver with Zadig if the device does not appear.

Enter update mode

Put the power switch in the left position if your device has one.
Hold the RUN or PLAY button.
Connect the device to the computer via USB.
Release RUN or PLAY after a couple seconds.

Send firmware

Click Connect and select the paired Twisted Electrons DFU device.
If prompted, select the DFU interface and confirm.
Choose the correct `.bin` file with the file picker.
Press Send to Device and wait for Done.

Handmade chip instruments from France

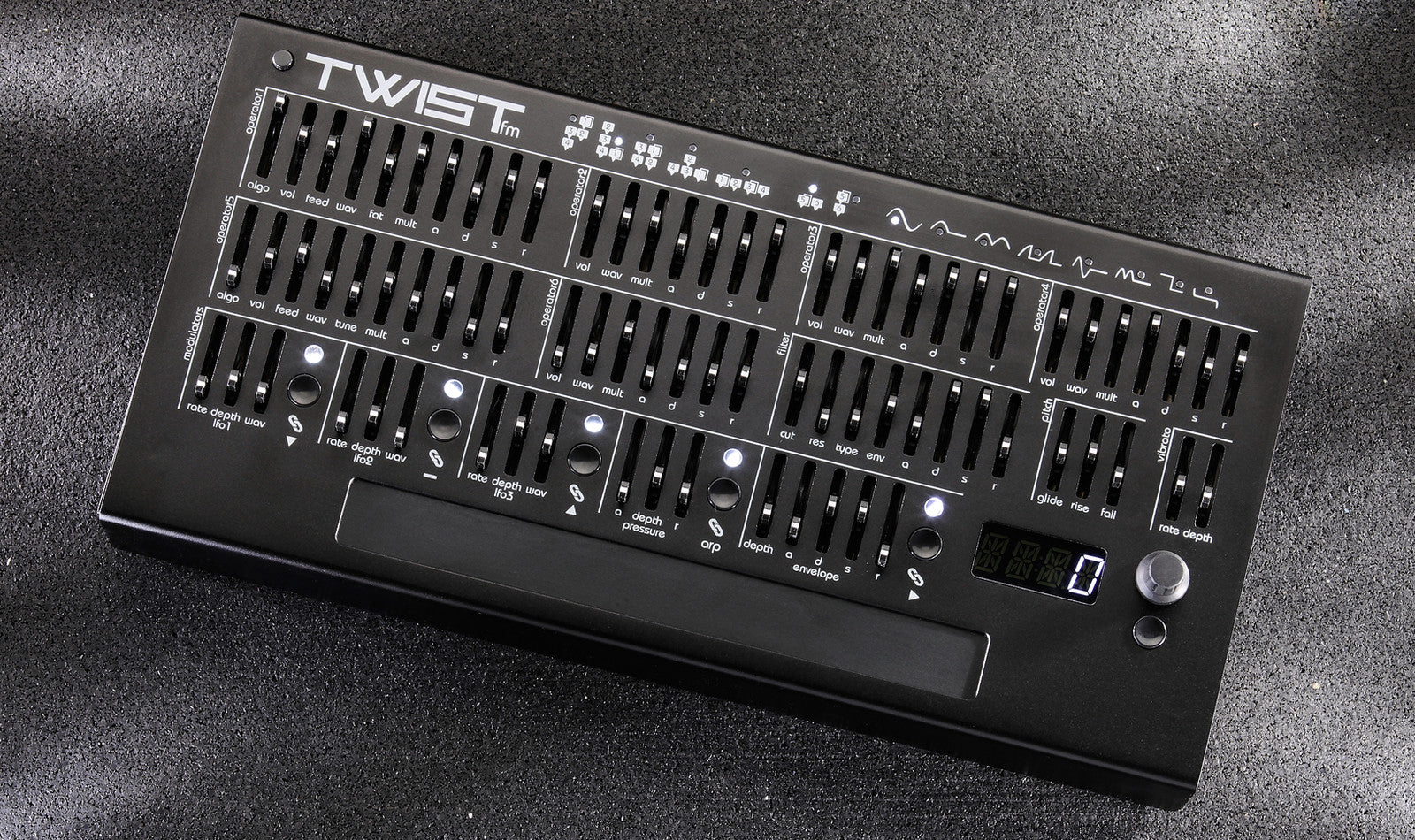

TWISTfm

Eight voices of OPL3 FM are paired with hands-on control, analog multimode filters, and performance-first modulation.

Shop TWISTfm

Engine: Dual OPL3
Voices: 8

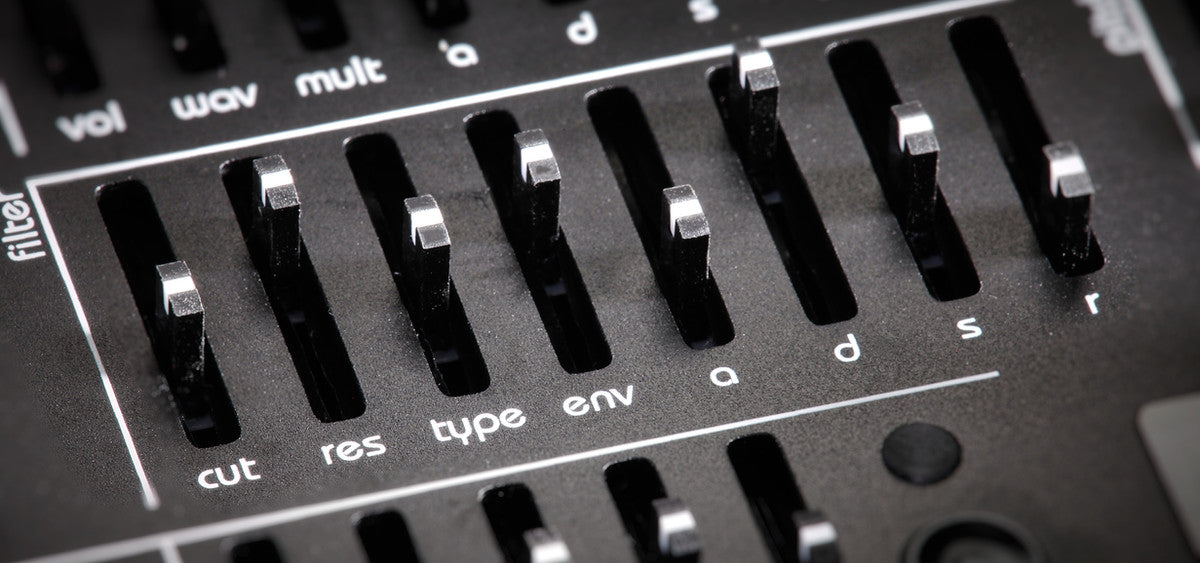

Filters: 8 analog
